Overview

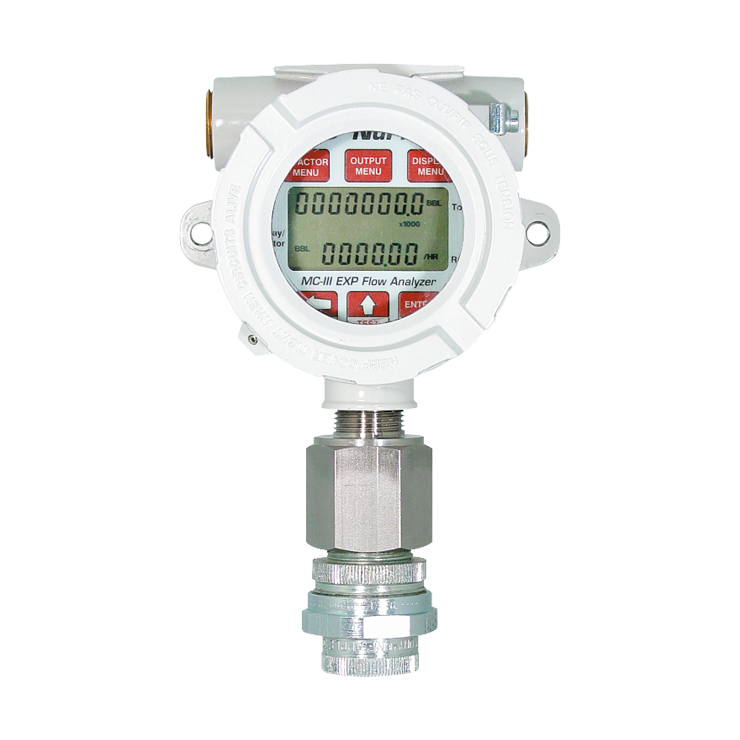

NUFLO MC-III EXP Flow Analyzer
For state-of-the art liquid and gas measurement with data logging and Modbus® communications in an easy-to-use explosion-proof totalizer, nothing compares with the NUFLO MC-III EXP Explosion-Proof Flow Totalizer. The NUFLO MC-III EXP Explosion-Proof Flow Totalizer stores more flow logs and downloads them faster than any other flow analyzer on the market. This powerhouse records up to 384 daily flow logs, 768 hourly logs, 345 event logs and downloads them to your computer via Modbus in less than a minute.
Now available as a stand-alone totalizer or as a complete Totalizer-and-Flow Meter system, certified for explosion-proof (CSA) or (ATEX/IECEX) applications.

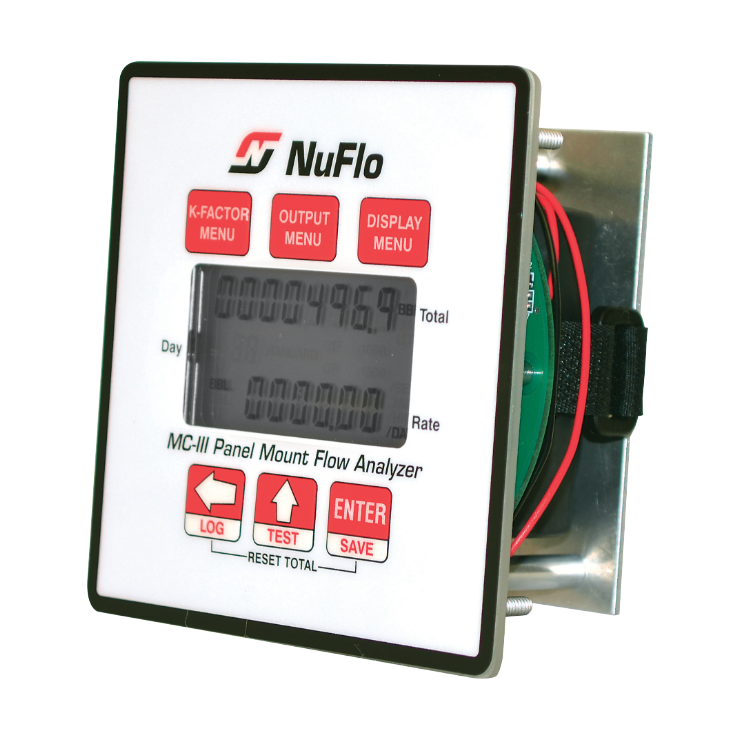

NUFLO MC-III Panel Mount Flow Analyzer
The NUFLO MC-III panel mount flow totalizer offers state-of-the art liquid and gas measurement with data logging and Modbus® communications in an easy-to-use totalizer with a standard 1/4-DIN mount. With the capacity to record up to 384 daily flow logs, 768 hourly logs, and 345 event logs, the MC-III panel mount is a powerful addition to any flow measurement operation.
The NUFLO MC-III Panel Mount Flow Totalizer is easily configured with the six-button keypad on the front of the instrument. Built-in shortcuts to common functions reduce the user’s time spent on site. The NUFLO MC-III Panel Mount Flow Totalizer connects to a Turbine Meter or a pre-amplifier. Users can select a 4 to 20 mA output, a pulse output, or an amplified flow meter frequency output that allows remote equipment to calculate flow rates and volume.

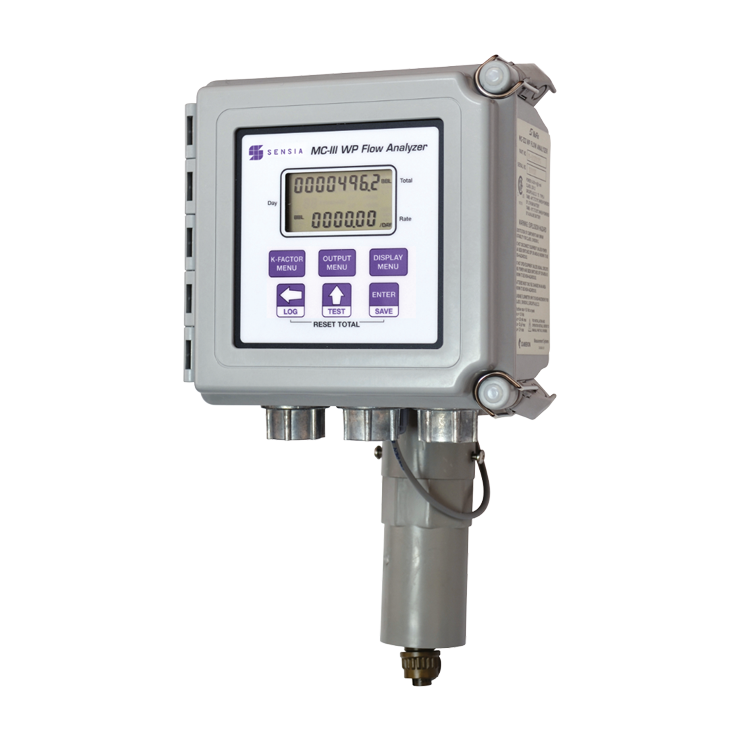

NUFLO MC-III Weatherproof Flow Analyzer
The NUFLO MC-III WP weatherproof flow totalizer offers state-of-the art liquid and gas measurement with data logging and Modbus® communications in an easy-to-use weatherproof totalizer. With the capacity to record up to 384 daily flow logs, 768 hourly logs, and 345 event logs, our NUFLO MC-III WP weatherproof flow totalizer s a powerful addition to any flow measurement operation.
The NUFLO MC-III WP Weatherproof Flow Totalizer is easily configured with the six-button keypad on the front of the instrument. Built-in shortcuts to common functions reduce the user’s time spent onsite. In addition, our NUFLO MC-III WP Weatherproof Flow Totalizer connects to a turbine meter or a preamplifier. Users can select a 4 to 20 mA output, a pulse output, or an amplified flow meter frequency output that allows remote equipment to calculate flow rates and volume.
Specifications
| NUFLO MC-III FLOW ANALYZER SERIES SPECIFICATIONS |
 |
NUFLO MC-III EXP
Standard Features
- RS-485 Modbus communications
- Extensive log archival capacity
- High-speed data downloads (less than a minute, based on 115K baud transfer speed)
- Interactive interface with a built-in wizard for quick and easy calibration and data access
- Simultaneous indication of rate and total
- Easy-to-read LCD displays
- Loop-powered analog output
- 12-point linearization
|
 |
NUFLO MC-III Panel Mount Flow Analyzer
Standard Features
- RS-485 Modbus communications
- Extensive log archival capacity
- Seven-digit volume, six-digit flow rate
- High-speed downloads (less than a minute, based on 115K baud transfer speed)
- Easy-to-read LCD displays
- 12-point linearization
- Simultaneous indication of rate and total
- Loop-powered analog output
- Nonvolatile memory
- Password-protected security options
|
 |
NUFLO MC-III Weatherproof Flow Analyzer
Standard Features
- RS-485 Modbus communications
- Extensive log archival capacity
- Seven-digit volume, six-digit flow rate
- High-speed downloads (less than one minute, based on 115K baud)
- Easy-to-read LCD displays
- 12-point linearization
- Simultaneous indication of rate and total
- Loop-powered analog output
- Nonvolatile memory
- Password-protected security options
|
